Inverterzone Solar WiFi Dongle Troubleshooting Guide

Running into an issue with your Solar WiFi Dongle? Most problems fall into one of the categories below. Find your symptom and try the fix before reaching out to support.

No Data Showing in the App

• Check the port: Confirm the dongle is plugged into the RS232/COM port, not a different port on the inverter.
• Power cycle: Turn the inverter off, wait 10 seconds, and turn it back on so it re-detects the dongle.
• Cable orientation: If you're using an RS232-to-RJ45 adapter cable, make sure it's the correct pinout for your inverter brand — a reversed cable is one of the most common causes of no data.

"Device Not Registered" Error

This is a temporary sync issue between the dongle and our servers. It typically resolves on its own within a few hours. If it's still showing after 24 hours, message us on WhatsApp with your dongle's serial number and we'll manually verify it.

Dongle Won't Connect to WiFi

• Use 2.4GHz only: The dongle does not support 5GHz networks. If your router broadcasts a combined SSID, split it into separate 2.4GHz and 5GHz networks temporarily during setup.
• Signal strength: If your inverter is in a garage, roof space, or far from your router, weak WiFi signal at that location can prevent a stable connection. Consider a WiFi extender near the inverter.
• Password errors: Double-check for special characters in your WiFi password — some symbols can cause issues during setup.

Inverter Model Not Listed in the App

We support 239+ inverter models across 38+ brands, and the list keeps growing. If your model isn't listed but has an RS232 communication port, message us on WhatsApp with your inverter's brand and model number — we'll confirm compatibility or advise on an alternative setup.

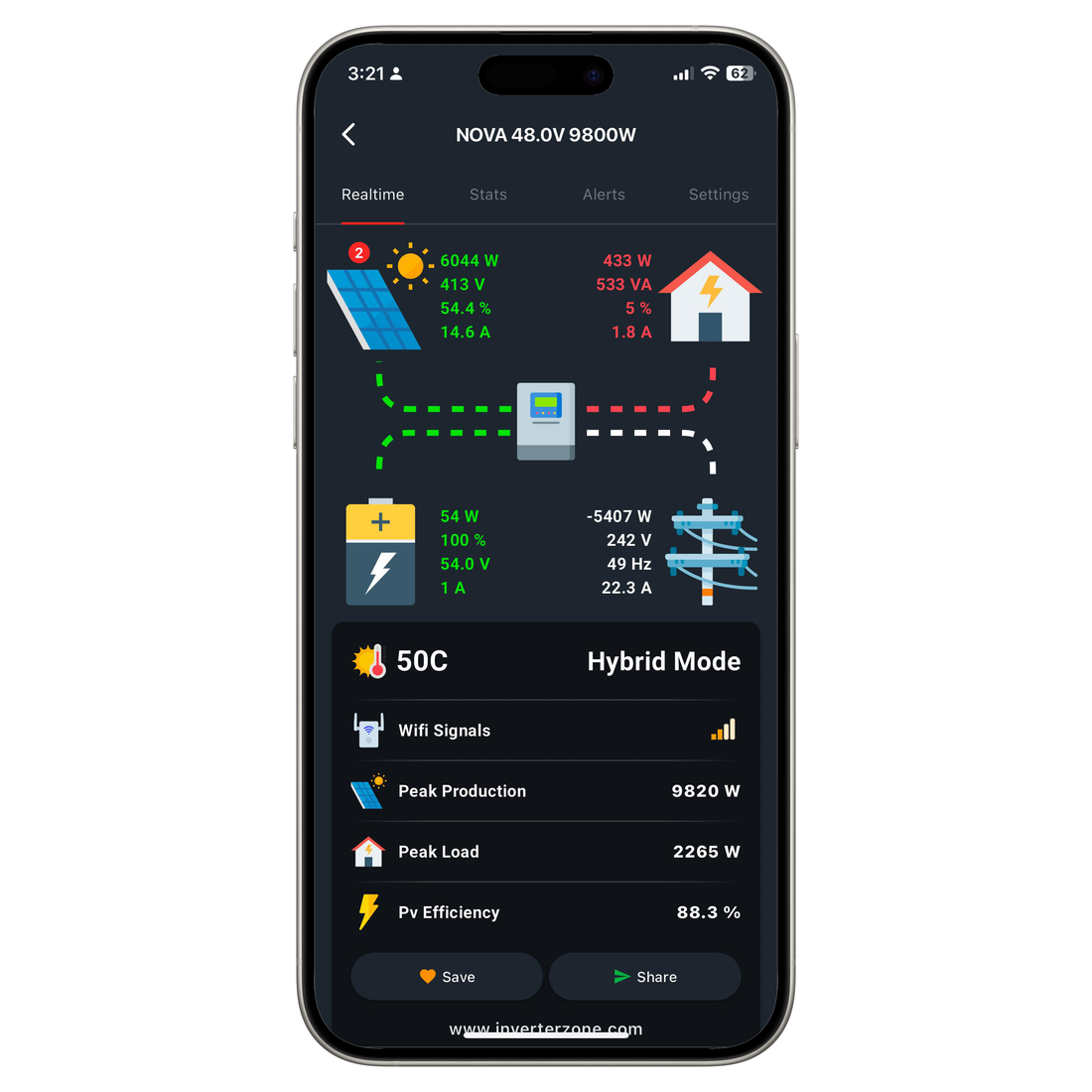

Data Looks Delayed or Inaccurate

• Real-time data typically refreshes every few minutes — a short delay is normal.
• If numbers look consistently wrong (e.g. solar production showing 0 during daylight), check that the dongle's connector is fully seated in the port.

Still Need Help?

Message us on WhatsApp (+92 349 4710080) or email info@inverterzone.pk. Please include your inverter brand/model and a photo of the dongle connection if possible — it helps us diagnose faster.

See also: Installation Guide
