Product Description

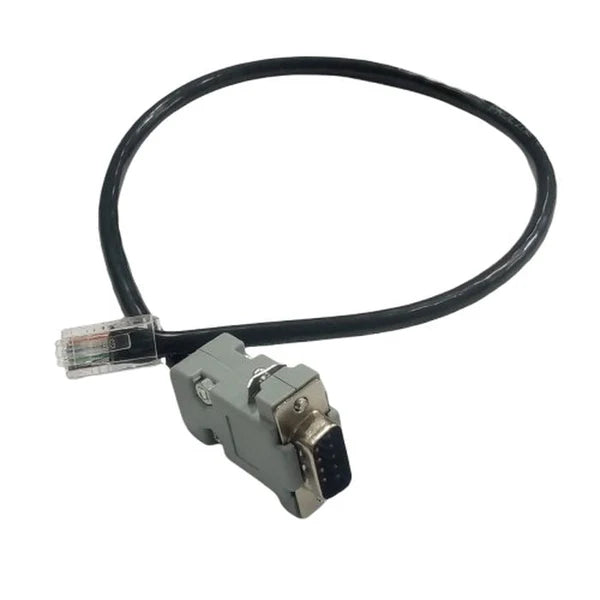

An RS232 DB9 to RJ45 connector cable is designed to adapt a device with a DB9 serial port (RS232 standard) to one that uses an RJ45 port. This type of cable is commonly used for serial communication, especially in networking environments like router or switch configuration. Here's a detailed description:

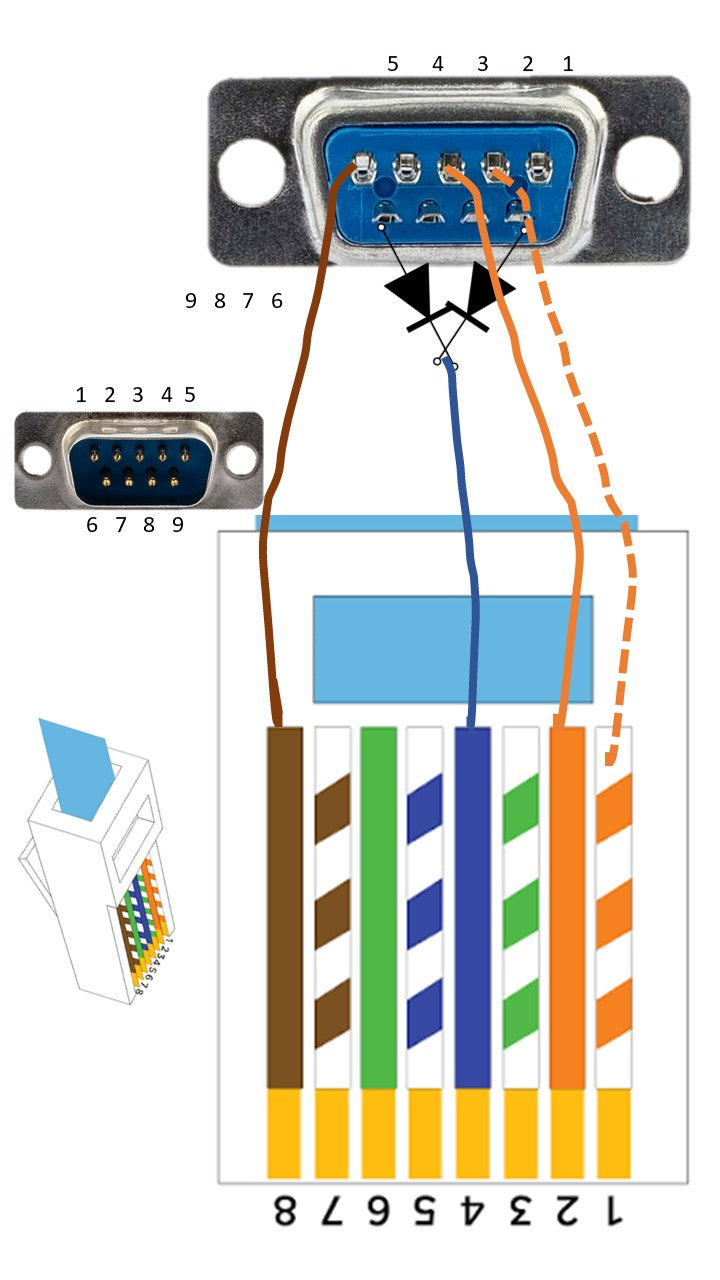

1. RS232 DB9 Connector:
- RS232 DB9 is a 9-pin D-subminiature connector used for serial communication.
- The DB9 connector has 9 pins, which include:
- TX (Transmit Data) – Pin 3
- RX (Receive Data) – Pin 2
- GND (Ground) – Pin 5
- Other pins handle control signals like RTS (Request to Send) and CTS (Clear to Send).
- RS232 is commonly used in older computers, industrial equipment, and networking devices to send data in serial format.
